Washer Sterilizer, Tuttnauer Tiva 2 Series Disinfector

Tuttnauer Tiva 2 Series Washer Sterilizer For Complex Instruments

Documentation:

Instruments used in dental and medical practices must undergo strict cleaning, disinfection, and sterilization procedures before they can be used on patients. During the washing phase of thermal high disinfection, the washer is purged with moist heat above 194 degrees for a minimum of 5 minutes to kill bacteria and viruses. The Tiva 2 wash disinfectors provide a turnkey solution for a complete decontamination cycle by washing, disinfecting, and drying diverse medical instruments for a complete decontamination cycle.

The Tiva 2 disinfector is an excellent performer that minimizes consumption, operational costs, and maximizes the sustainability of the device. This software enhances user experience by combining an advanced control system and an easy-to-use interface, simplifying the staff's task and reducing the processing time, in addition to using high-quality materials that provide a safe and efficient process.

Benefits and Features of the Product

• In order to achieve a complete decontamination cycle, Thermal High Disinfection should be used.
• The goal of this project is to minimize consumption and operating costs while maximizing sustainability
• The advanced control system improved user experience with an easy-to-use interface and an advanced control system
• Washing chamber made of high-quality stainless steel AISI 316L
• Chamber with a 65-liter capacity and a glass door that can be opened manually
• There are a total of 40 (preset and programmable) programs that can be operated by a touch screen with a color graphics display
• Effective dry - Your equipment will be dried thoroughly and thoroughly with the help of a high-efficiency air drying pre-filter + a HIPA H14 filter
• Reduction in cycle time - Preheated tank for a reduction in cycle time (only for the HS model)
• Detergent dosing - Two Dosing pumps with flow meters for alkaline detergents and neutralizers for use with alkaline detergents. TIVA2-H T is also available with an additional pump
• ETS - this system provides 100% evaporation of the previous water in the system

Technical Specifications

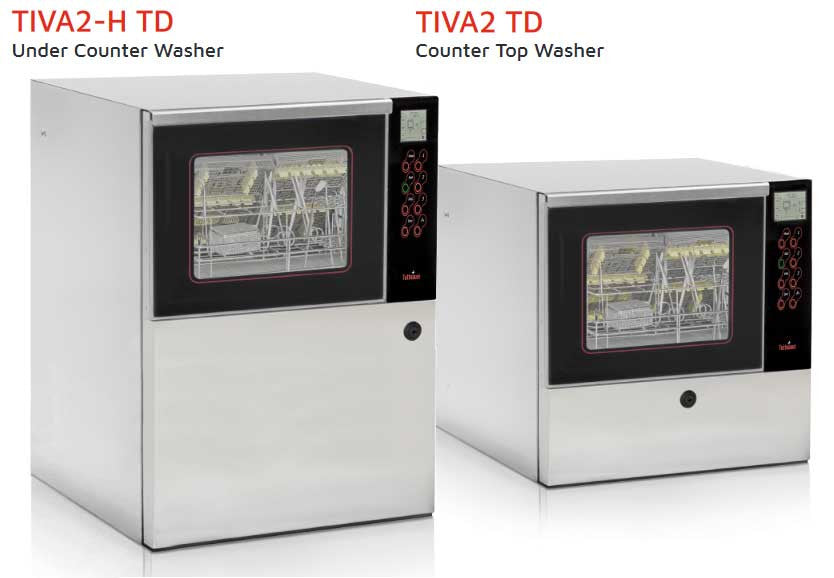

Overall Dimensions (WxDxH)
Tiva2 TD
Countertop washer
23.4” x 21.3” x 32.6”
Tiva2 H-TD
Under-counter washer
23.4” x 21.3” x 32.2”
Chamber Volume
65 Liter
Water Connections
Cold water connection for TIVA2 (default)
Connection for demineralized water
ted Water Softener with Salt Box
Electrical Connections
208+240V 1-Phase 60Hz
