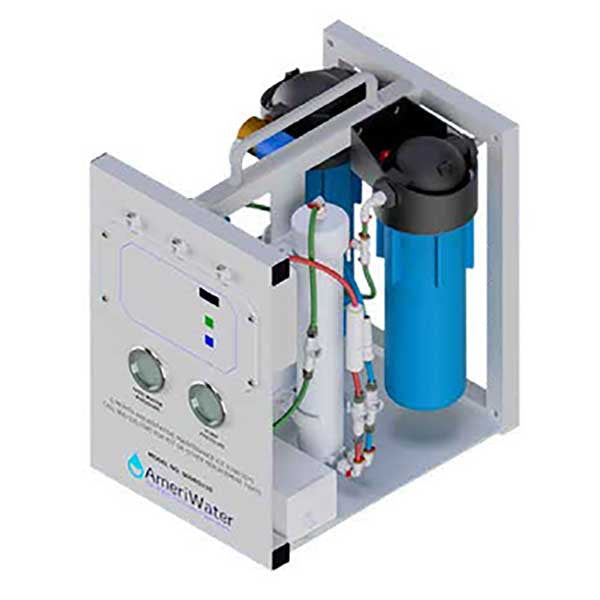

Tuttnauer Ameri Water Reverse Osmosis System Series

Tuttnauer Ameri Water Reverse Osmosis System Series, For Clinical Applications

Documentation:

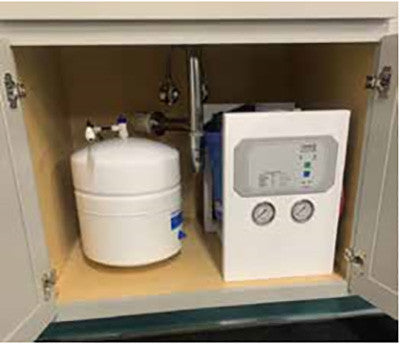

The AmeriWater SRO150 Series is a Complete Water Treatment System Designed to Provide Low Conductivity Water for the Final Rinse and Disinfection Cycle of Tabletop Washers, Freestanding Washers and Under Counter Washers. The System Includes a Reverse Osmosis Unity with Either a 4.5, 9.2, or 14 Gallon Pressurized Tank for Storage and Delivery. The System Can be Wall Mounted or Installed Underneath a Standard Counter Sink.

Features:

• Small Footprint Design Allows System to Easily Fit Underneath a Sink or be Mounted to a Wall
• Quick Connects for Feed, Product and Reject Water Located on Front Panel for Easy Access
• Designed for End User Installation

• Control / Monitor
  - Digital Microprocessor with Digital TDS and Fault/Status Readouts
  - TDS Adjustable Limit
  - Tank Full Contacts with Short or Long Restart
  - Five Second Pump Start Delay

• High Rejection TFC Membranes
• Easy to Maintain and Superior Serviceability
• Pressurized Storage Tanks (4.5, 9.2, or 14 Gallons)
• Floor or Wall Mounted RO System
• Powder Coated Aluminum Frame
• Integrated Sediment and Carbon Block Prefilters
• Automatic Feed Water Valve
• Pump and Feed Water Liquid Filled Pressure Gauges
• Integrated Booster Pump

Specifications:

• 150 GPD
• Feedwater Temp. 50 to 90°F (Ideal is 77°F)
• 95 to 98% Nominal Rejection
• Feed Water Pressure 20 Min / 80 Max PSI
• Minimum Flow Rate 1 GPM
• Electrical 115V, 50/60 Hz, 1 Ph Controller, 24V Pump, Standard 3 Prong Plug
• RO - 40 lbs
• Tank - 8 lbs (4.5) 15 lbs (9.2) 24 lbs (14)

Models:

1. 00SRO150-4 ~ 4.5 Gallons
2. 00SRO150-9 ~ 9.2 Gallons
3. 00SRO150-14 ~ 14 Gallons

System Produces 150 GPD and Is Ideal For:

• Dental Clinics
• Veterinary Clinics
• Physician Offices
• Clinical Chemistry Labs
