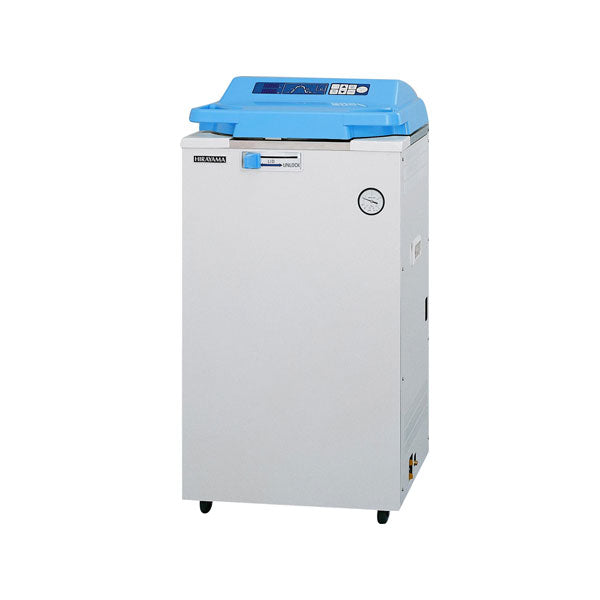

Amerex Hirayama HVP-50 Top-Loading Autoclave w/ Automatic Drying

Amerex Top-Loading Autoclave with Fully Automatic Drying Cycle using Heat & Vacuum

Manufacture Part No. HVP-50

Features

• Space-saving design with lid opening upward
• Fully automatic dying cycle for solid loads uses heat and vacuum for faster and more efficient drying
• Lid safety interlock prevents lid opening when a cycle is in progress, the chamber is pressurized, or when the temperature exceeds 97°C
• Pre-vacuum cycle - vacuum pump removes air from the chamber when sterilizing solids such as glassware and pipette tips, thereby eliminating cold spots, and ensuring faster and more efficient sterilization
• One-touch lever to easily open and close chamber lid
• Liquid cycle for media and agar
• Process display shows the program progress selected and status of the sterilization cycle
• Cycle for wastes and glassware without drying
• Bacteria filter reduces re-contamination
• Door-closure sensor prevents a cycle from starting unless the door is closed properly
• 1 Year Warranty

Specifications

Temperature
- Operating Range: 105°C to 135°C
- Display Range: 5°C to 140°C

Gauge Pressure
- Operating Range: 3 to 24.8 psi

Timer
- Sterilization: 1 to 250 minutes
- Drying: 1 to 90 minutes

Dimensions
- Overall: 20.1" W x 24.8" D x 40.9" H
- Chamber: 50 Liter, 11.8" D x 28" H

Power
- Source: 120V, 50/60 Hz, single phase (220V/240V available on request)
- 2000 watts

Programs

1. For Solids with Drying

Heating and air removal from chamber by vacuum pump (pre-vac) -> Sterilization -> Water and steam exhaust (fast) -> Drying by heat and vacuum -> Completion

2. For Wastes / Solids without Drying

Heating -> Pre-vac -> Sterilization -> Steam exhaust (fast) -> Completion

3. For Liquids / Agar

Heating -> Sterilization -> Auto steam exhaust (programmable rates, or ambient cooling w/o steam exhaust) -> Completion

4. Drying without Sterilization

Drying with heat and vacuum (time programmable) -> Completion (for additional drying after Program #1, if desired)

Safety Devices: Temperature and pressure-sensitive lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff. mechanical pressure relief valve, lid-closure detector, over-current detector and circuit breaker with ground fault circuit interrupter
