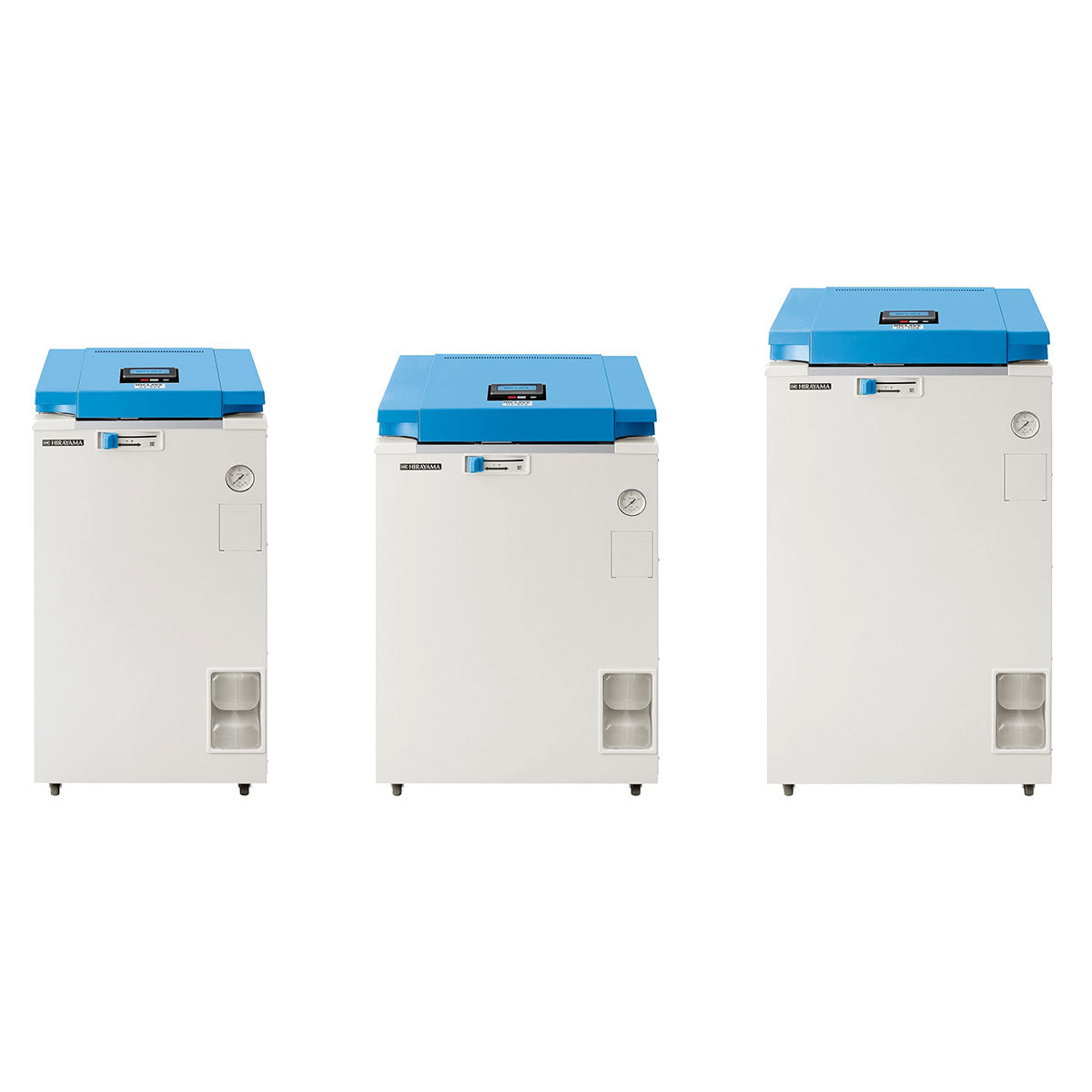

Amerex Hirayama HICLAVE HV II Series Autoclave

Amerex HICLAVE HV II Series Autoclave - Redesigned & Easy to Operate

Manufacture Part No.(s): HV-50II, HV085II, HV-110II

Features

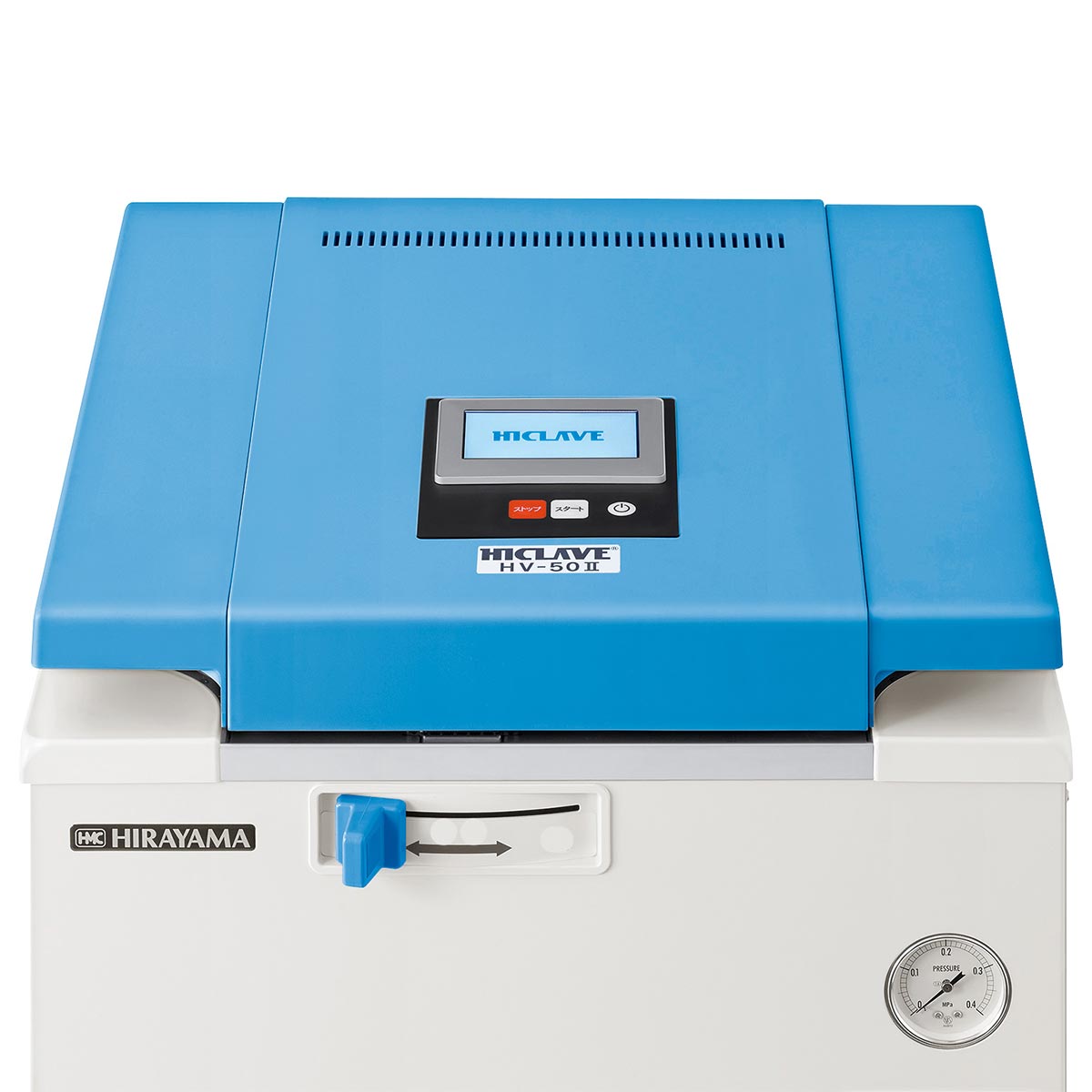

• Space-saving design with lid opening upward
• Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly
• Programmable auto-start for initiating a cycle up to 1 week later
• Waste sterilization mode incorporates an additional air removal stage for trash
• Programmable rate for pulse exhaust
• Automatic air purging by a microprocessor prevents over-pressurization during a cycle
• Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temp is > 97°C

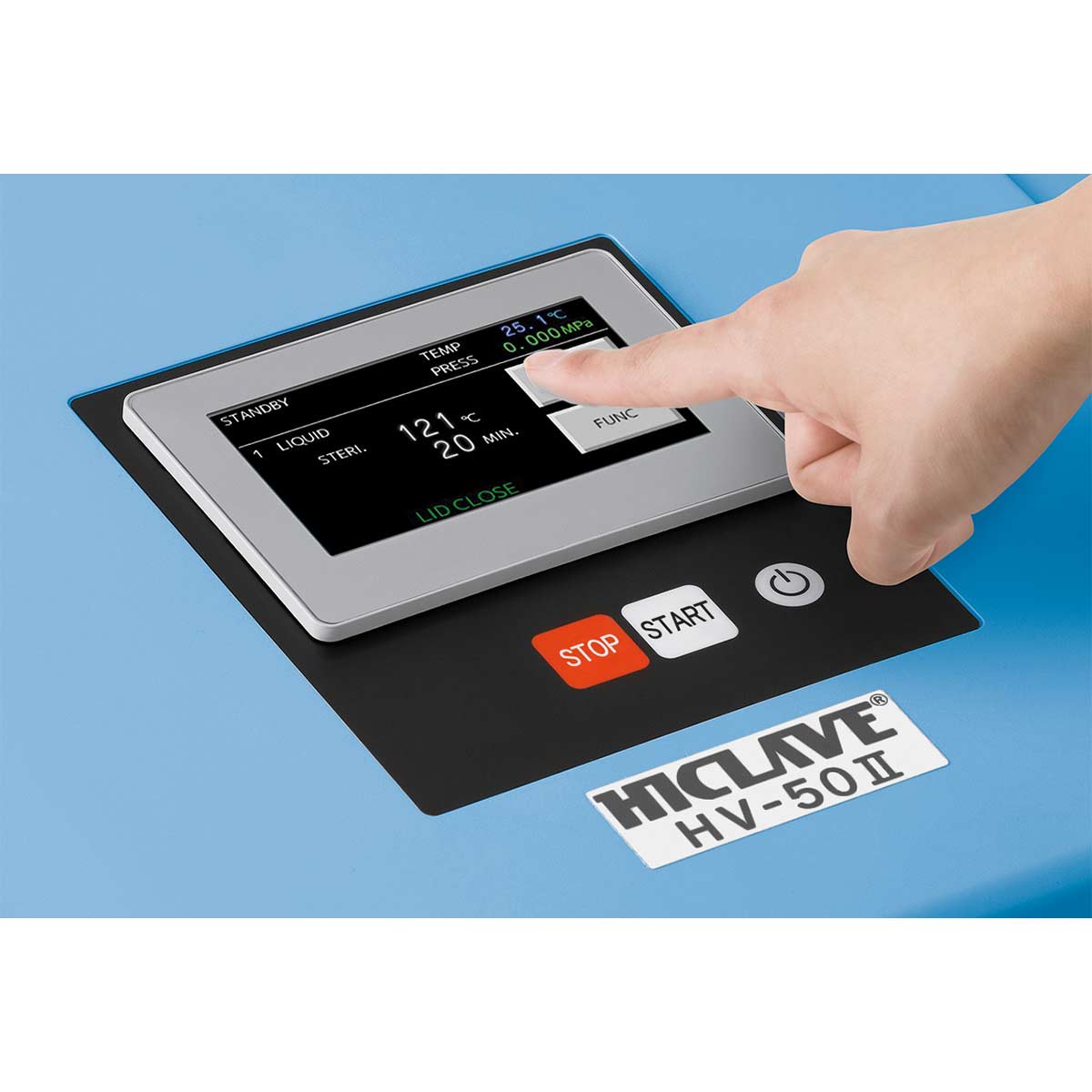

• In-process display shows status and progress of sterilization cycle in real time
• Program up to 40 cycles across 5 different models (up to 8 programs per mode can be stored)
• Agar melting mode for rapidly melting agar and maintaining it at liquid temperature, or for a hot and faster start up
• Maintenance, safety and alarms are displayed on the color screen
• Memory backup system retains user-programmed parameters even in case of power failure
• Pass code protection prevents parameters from being modified

Specifications

Temperature Operating Range
- 105°C to 135°C

Temperature Warming Range
- 45°C to 60°C

Agar Dissolution
- Heating at 60°C to 100°C for up to 1 hour (temp and time programmable), followed by 45°C to 60°C (temp programmable) for up to 20 hours

Pressure Gauge
- Digital Display: 0-0.3MPa
- Analog Display: 0-0.4MPa
- Maximum Allowable: 27 psi (HV-50II) 38 psi (HV-85II/HV-110II)

Timer
- Sterilization: 1 to 250 minutes
- Delayed Auto-Start: Program autoclave to start 1 minute to 7 days later

Overall Dimensions (W x D x H)
- HV-50II - 21.6" x 21" x 41"
- HV-85II - 26.4" x 26" x 40.6"
- HV-110II - 26.4" x 26" x 48"

Chamber Dimensions (Diameter x Height)
- HV-50II - 50 liters, 11.8" x 28"
- HV-85II - 85 liters, 16.5" x 24"
- HV-110II - 110 liters, 16.5" x 31"

Power
- HV-50II - 120V, 50/60 Hz (220 available)
- HV-85II - 208V/220V/240V
- HV-110II - 208V/220V/240V

Programs

1. For Liquids

Heating -> Sterilization -> Exhaust (ambient cooling or programmable pulse exhaust) -> Completion

2. For Solids

Heating -> Sterilization -> Exhaust (fast) -> Completion

3. For Waste

Heating -> Sterilization -> Additional Air Removal -> Exhaust (ambient cooling or programmable pulse exhaust) -> Completion

4. For Agar

Heating -> Sterilization -> Exhaust (ambient cooling or programmable pulse exhaust) -> Warming -> Completion

5. For Melting Agar

Rapid melting at 60°C to 100°C (temperature and time programmable) -> Maintain at 45°C to 60°C (temperature programmable) -> Completion

Safety Devices: Dual-sensing safety lid interlock, over-pressure/temperature/lower-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
